Isolation Products Overview:
YUTECH Isolation products are made with the view of suiting a wide range of applications of Automations and Instrumentations. You can choose a suitable product from our 42 Models in regular production.

Broad Classification of Isolation Products: YUTECH Isolation Products are divided in two broad categories which we have termed as “Series”, likewise A-Series and L-Series. This Classification is based on the Product Specifications. The products though on the onset may seem similar but changes in specifications of each Series are made to suit different needs and may lead to price variations.

A Brief Overview of the Isolation Products is as below:
A-Series: A-Series Isolation Products are designed for all the High Accuracy High Protection Instrumentation and Automation Applications which require Isolation. The products have excellent accuracy and linearity specifications and can be used for very high accuracy Instrumentation and Automation Applications. Output loads up to 650 ohms can be easily connected to these products. The Products also sport various Input, Output and Power Supply Protections. Further Sub Classification: The Isolation Products are further sub classified by the Particular Application for which they are designed. They are all available in A-Series.

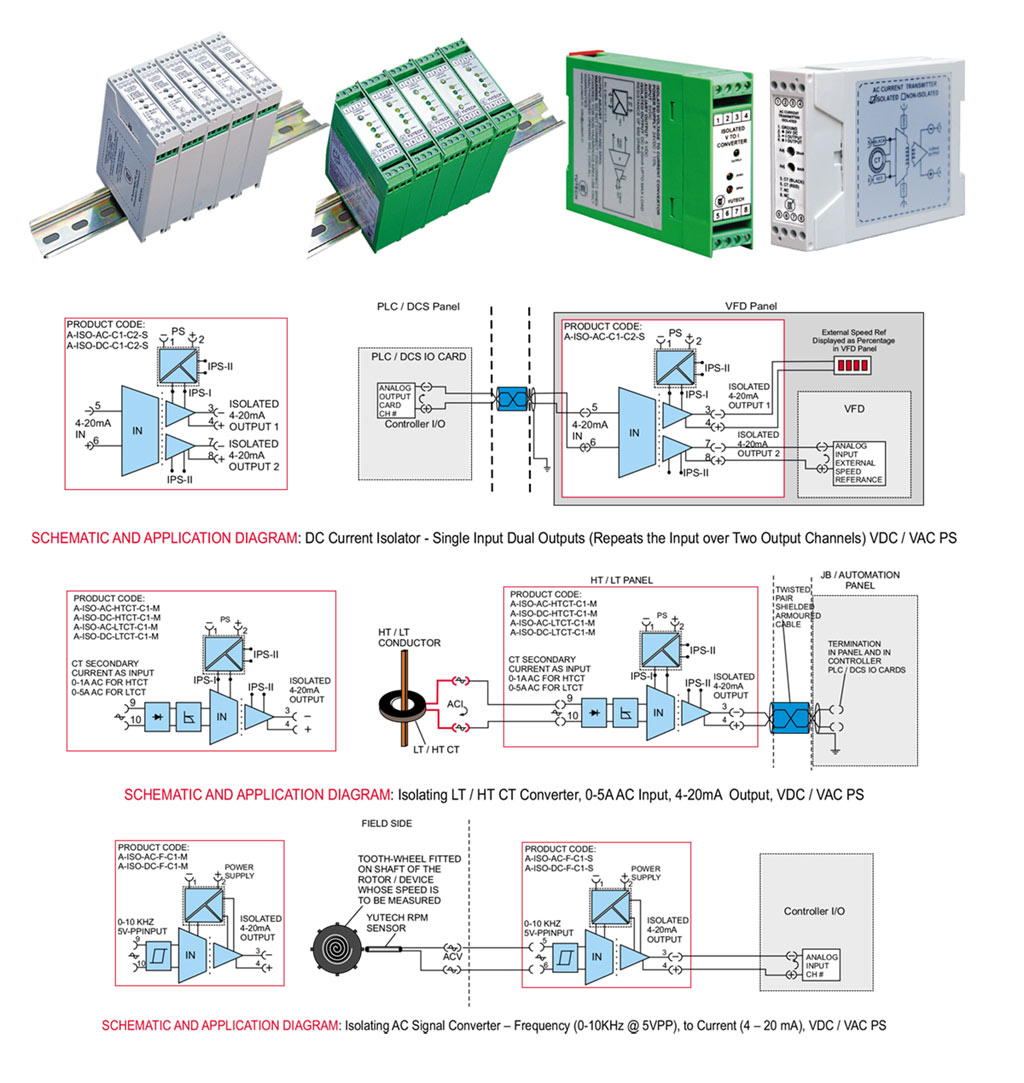

DC Current Isolators: This Product range features various DC Current Input and Output Combinations. DC Voltage Isolators: This Product range features various DC Voltage Input and Output Combinations.

Isolating DC Signal Converters: This Product range features DC Signal Converters which convert one DC signal type to another type, say Voltage to Current and vice versa.

Isolating AC Signal Converters: This Product range features AC Signal Converters which convert AC Voltage and Frequency Signals to standard DC Current or Voltage Outputs which are easily interfaced with any modern Controller, PLC, DCS or Process Indicator.

Isolating CT Converters and Transmitter: These Products Convert and Transmit AC Current Signals from HT / LT Current Transformers standard DC Current Output which can be interfaced with any modern Controller, PLC, DCS or Process Indicator.

Isolating Temperature Transmitters: These Products convert Temperature Signals to standard DC Current Output which can be interfaced with any modern Controller, PLC, DCS or Process Indicator. Temperature Sensors like RTD and Thermocouple can be interfaced with directly to obtain a Linearized and Compensated output.

Please refer to the Datasheets and Ordering Information (Downloadable from this site) for all Isolation Products for complete Technical Specifications. Application Notes have been created to throw light on how the Isolation Products can be used for better ways of getting Excellent Signal Quality for Control and Monitoring Applications. We urge you to please go through the Notes.
