Continuous Centrifugal Machine Automation


  • Central Opening Concentric Operation
  • Pneumatically Actuated
  • Electronic Positioner
  • Input: 4 - 20 mA

Application:

Perfect Solution for Centrifugal Machine Massecuite intake. As the opening is Concentric, the Massecuite falls exactly in the center without spilling or splattering.

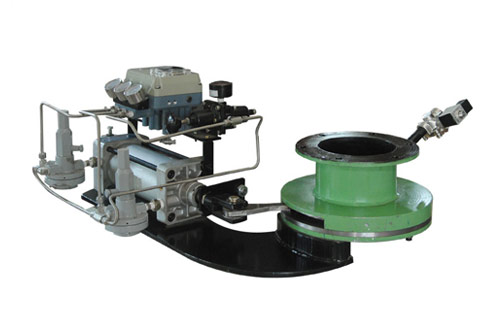

IRIS Valve Control:

  • Control Action: PID with respect to Centrifugal Machine Load.
  • Manual Over-ride provided.
  • Enclosure: CPU is Din Rail Mounted and Display is 96 DIN installed in Rittal Field Mounted IP55 Panel Box.
  • Optional: Wash Water Control with respect to Centrifugal Machine Load.

Advantages:

  • Optimum Capacity Utilization of Continuous Centrifugal Machine.
  • Power, Water and Steam Saving as exact quantities are applied.
  • Massecuite Overflow Prevention in Drive Trip Condition as Valve Closes Automatically.
  • Reduced Molasses Dilution thus Reduced Sugar Losses.
